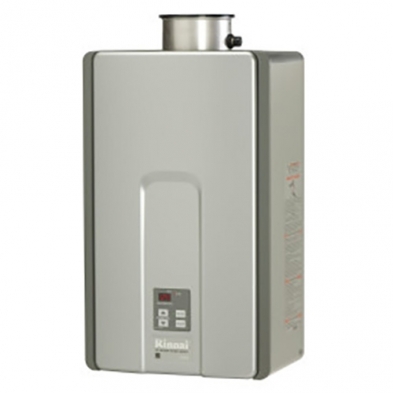

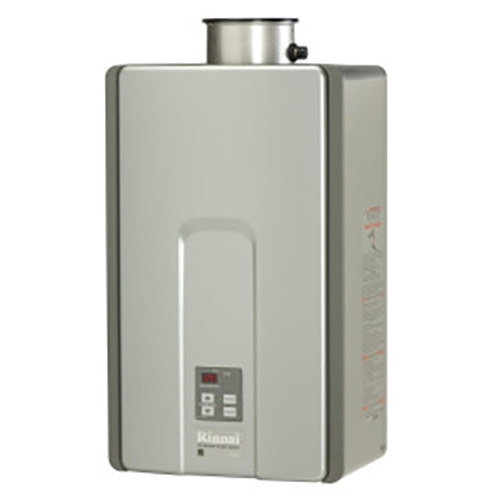

The Luxury Series of Rinnai tankless water heaters offers the highest output of our non-condensing units. Its incredible efficiency is built into a space-saving, modern design to satisfy demands of larger homes. Experience luxury and convenience.
Features
Features
ENERGY STAR Qualified
Energy Factor of .82 for Natural Gas and Propane
Built-in Rinnai Circ-Logic recirculation program cycles an external pump at pre-set intervals and temperatures to maximize efficiency and comfort (see brochure for more details)
Certified for Installation in Manufactured (Mobile) Homes
Enhanced scale detection lessens possibility of serious, long-term damage to unit
Temperature lock function prevents accidental or unauthorized changes to water temperature
Specifications
Specifications
| Width: | 14" |
| Height: | 23" |
| Depth: | 9.3" |
| Weight: | 46 lbs. |
| Ignition: | Direct Electronic |
| Hot Water Capacity: | 0.26 to 9.8 GPM |
| Minimum Activation Rate: | 0.4 GPM |
| Minimum/Maximum Gas Rate (Input BTUs ): | 10,300 - 199,000 |
| Energy Factor: | 0.82 for Natural Gas and Propane |
| Energy Star: | Yes |
| Approved Gas Types: | Natural Gas or Propane |
| Temperature Settings: | 98°F - 140°F with MC-91-2US |
| Temperature Settings: | 98° F - 185° F with MCC-91-2US |
| Ultra Low NOx | No |
| Electrical: | AC 120 Volts, 60 Hz |
| Gas Supply: | 3/4 Inch MNPT |
| Cold Water Inlet: | 3/4 Inch MNPT |
| Hot Water Outlet: | 3/4 Inch MNPT |
Literature
Literature
Support
Support
Manuals: Operation and Installation
Rinnai Installation and Operation Manual: RL75i_RL75e_RL94i_RL94e VC Series
