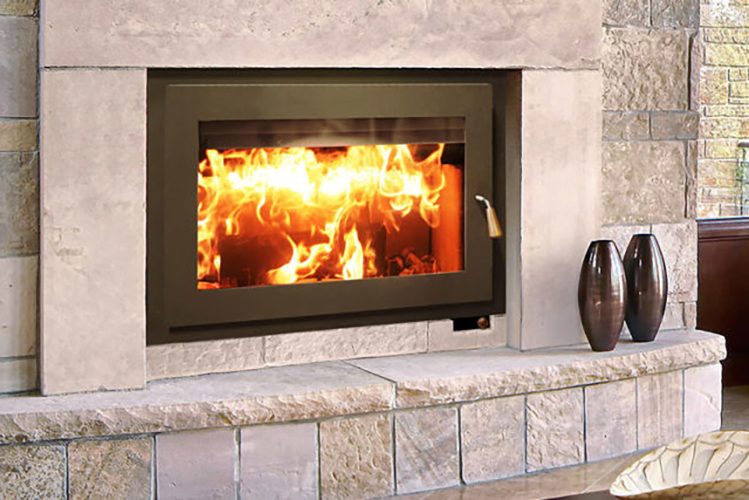

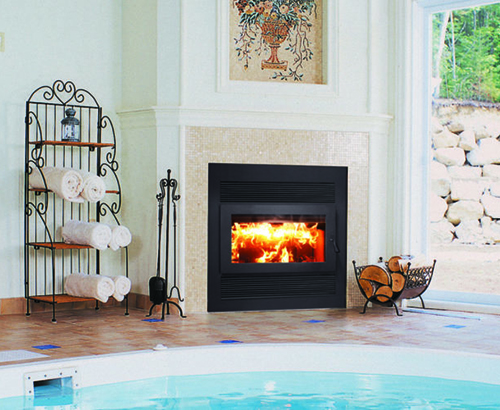

RSF, Focus SBR Fireplace

The Focus 320 burns with a unique flame that is utterly mesmerizing and the contemporary style door offers the largest viewing space possible.
The Focus 320 produces enough heat for the average house, burns overnight, and has low emissions.
In addition, the RSF Central Heating Options are compatible, which allows the heat to be spread uniformly throughout the home.

Large 2.6 cubic foot firebox.

EPA 2015 certified at an emission rate of 4.5gr/hours

Molded firebrick lining.

Mobile home approved.

Takes 22” logs.

Can be installed into a masonry chimney using an RSF adapter and a UL/ULC listed stainless steel chimney liner.

Can be connected to a central heating system.

Outside Dimensions 45″ W X 44 1/4″ H X 24″ D

Shipping weight 562 lb

Glass viewing size 24 ¼” W x 13 ¼” H

Firebox Size 2.6 cubic feet

Based on overall firebox dimensions, EPA official firebox dimensions are smaller.

Firewood Length 22″

Chimney 7″ Excel

Door Finish Black

Outside Air 4″, meets R2000

All RSF models come equipped to accept a 4″ outside air duct, a 5″ can also be used. All models can also be installed to operate using room air.

Mobile Home Approved YES

BTU Output Maximum 50,000 BTU/hr

Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of installation, etc.

Heating Capacity 1,000 to 2,000 ft2

Depends primarily on wood quality, ambient air temperature and building heat loss.

EPA Certification The Focus 320 is available in Canada only and is certified to Step 1 of EPA 2015 at a rate of 4.5 grams/hour.

Optimal Efficiency 77%

Low Heating Value (LHV), using data generated under the best circumstances and CSA B415.1-10 calculations.
