Hearthstone Manchester Wood Stove

Description

Description

With the most features of any stove plus our TruHybrid technology, the Manchester offers efficiency and comfort.

Features

Features

Natural Convective Heat

The Manchester is built with an air channel up the back and across the top of the stove which helps circulate warm air through your home.

Convenient Features

Load your fireplace through the side door and use the integral ash pan to help keep your hearth clean and tidy.

TruHybrid™ + Soapstone

Lined with soapstone blocks and using our TruHybrid™ technology, the Manchester offers long-lasting and efficient heat.

Specifications

Specifications

Ash Pan: Included

BTU: Up to 75,000

Efficiency: 78% HHV

EPA Certified: 0.65 g/hr

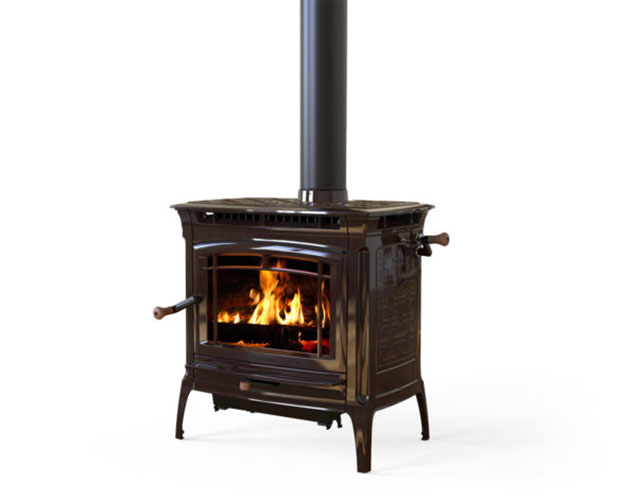

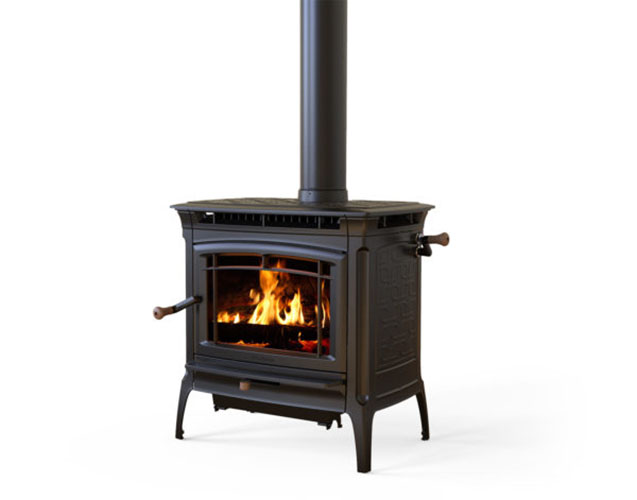

Finish: Brown Enamel, Matte Black

Firebox Capacity: 2.9 cu ft

Flue Exit Diameter: 6

Flue Exit Location: Top or Rear

HeatLife: 30 Hours of heat

Heats up to: 2,400 sq ft

Maximum Log Length: 24″

Model: 8362

Rear Heat Shield: Included

Side Load Door: Left

Stove Type: Cast Iron Wood Stove

Weight: 520 lbs

Clearances:

Single-wall connector pipe, no close-clearance heat shield

Side: 18″

Rear: 16″

Corner: 9″

Double-wall connector pipe with close-clearance heat shield

Side: 16″

Rear: 6″

Corner: 9″
